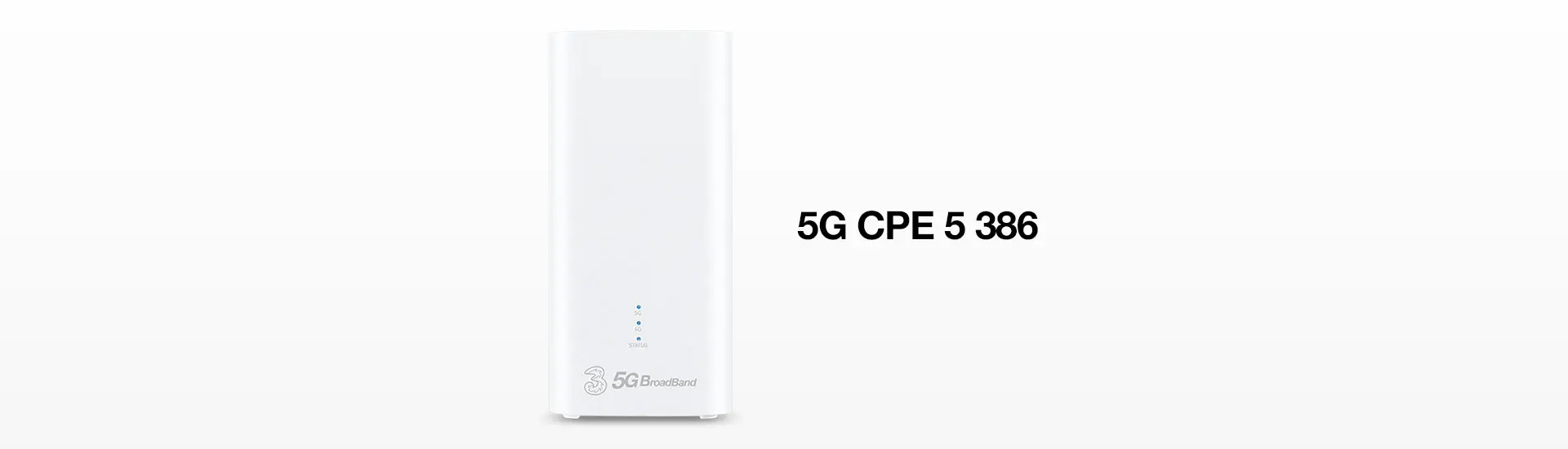

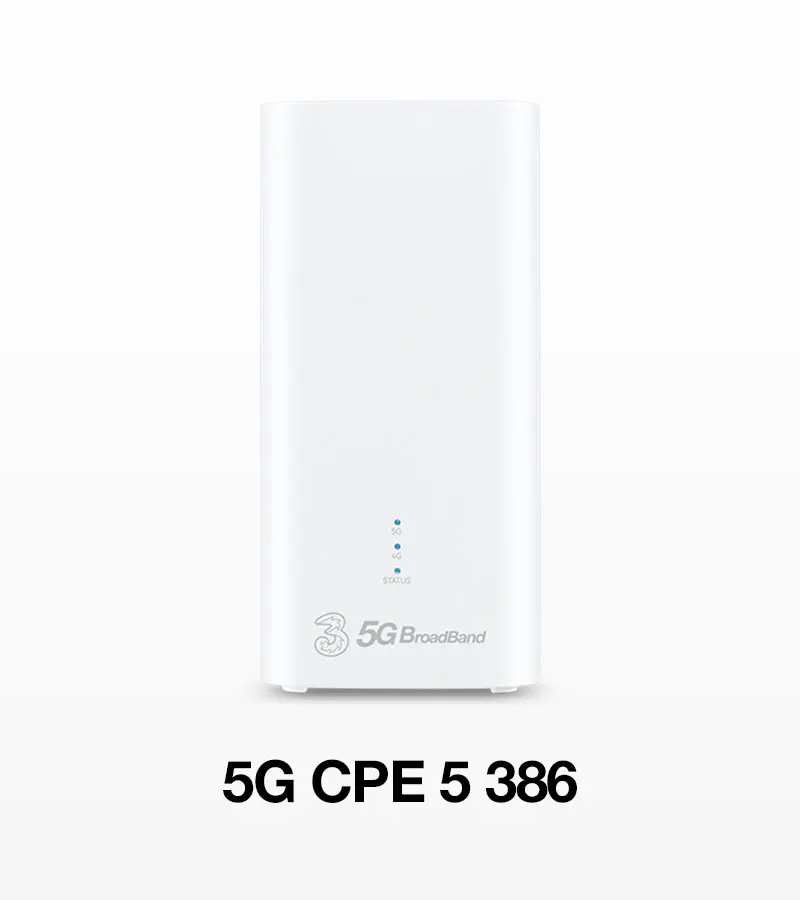

5G CPE 5 386 5G CPE 5 386

5G CPE 5 386

NEW
5G
Specifications
Specifications
General Features
Communication Standard 3GPP Release 16; 4G DL Cat 20/ UL Cat18
Applicable Network 5G / 4G
Network Mode 5G NR SA, 5G NR NSA, LTE
5G Transmission Rate^ DL up to 5.4Gbps / UL up to 500Mbps
4G Transmission Rate^ DL up to 2.0Gbps / UL up to 200Mbps
Network Band 5G: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n71/n75/n77/n78/n80/n81/n82/n83/n84
4G: B1/B3/B5/B7/B8/B20/B28/B32/B38/B40/B41/B42/B43/B71
Wireless (WLAN) Wi-Fi: 2.4GHz: 2401-2483MHz;5GHz: 5170-5330MHz, 5490-5710MHz
Wireless Frequency Band: 2.4GHz & 5GHz, dual-band auto-selection
Antenna Built-in 5G/LTE antenna
Built-in Wi-Fi 2.4 GHz and 5 GHz antennas
Processor TD Tech N660
Network Port One Wan / Lan GE port, one Lan GE port, one SIM card slot (Nano-SIM)
Power Support Power: < 24W
AC / DC Power Supply: AC: 100V - 240V 50Hz / 60Hz, DC: 12V / 2A
Specifications
Dimension 90 x 90 x 188.6 mm
Weight approx. 587g (excluding the power adapter)
Colour White
In-Box Accessories
Accessories Quick Start Guild x 1
Power supply adapter x 1
Ethernet cable x 1
Country of Origin: China
^ Maximum download / upload speed according to the specification of the relevant mobile device purchased by a customer and will not correspond to the speed experienced by an individual customer. The speed experienced by the customer will be less than the specification of the relevant mobile device and will be affected by the network setting, network specification, user's device, transmission technology, individual network and software used, network configuration and coverage, usage level and extraneous factors.
